Brief introduction

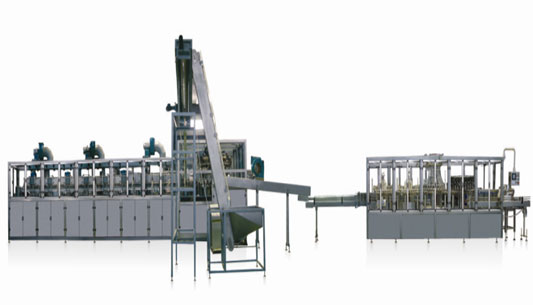

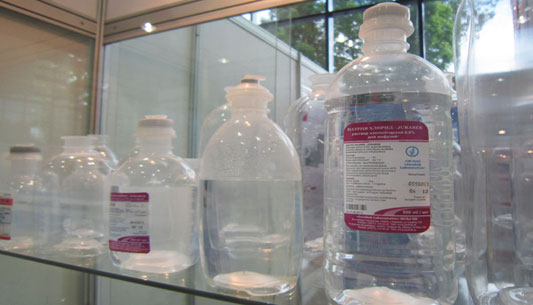

SPCGF2/10 Blow/Wash/Fill and Seal Monoblock Machine ,in order to suitable for requirements of  small volume and large volume ,based on SPCGF12/25 blowing, washing, filling and sealing monoblock machine and promote the lower capacity but bigger volume plastic bottle I.V. infusion production line. Its made of liner blowing machine with 2 cavities ,rotary type washing , filling and sealing and middle transition parts, suitable size can from 100ml to 1000ml. SPCGF2/10 blowing, washing, filling and sealing monoblock machine is designed with highly automatic, no need worker to touch infusion bottle, it completely meet the requirements of new GMP, suitable for customers or some other foreign countries , who need low capacity or large volume.

Blowing part:

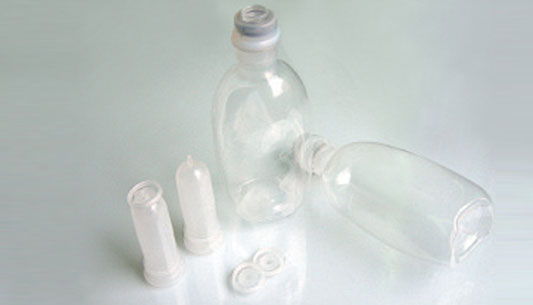

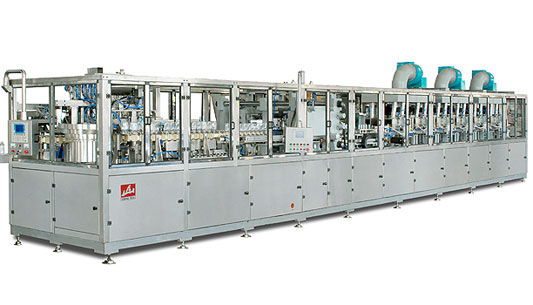

SPCGF 2/10 blowing, washing, filling and sealing monoblock machine , blowing machine is adopts round column cam turn perform and synchronous perform loading technology, guarantee the qualified rate of perform loading; it adopts Germany FESTO pneumatic component and solenoid valve, Siemens PLC, Germany Lenze servo motor and other international famous brand components, ensure the stability of machine; using quartz infrared lights to heat perform uniformly, improving qualified rate of blowing.

Transition part
SPCGF 2/10 blowing washing filling and sealing machine is intend to make the interval output bottle rotary and move to filling and sealing machine constantly. This part adopts servo bottle sending structure and synchronous belt structure. Ensure the infusion bottle into washing filling and sealing machine correctly. Compared with conveyor connection, this mode of connection have advantages of short distance, no bottle down and move steady constantly characteristics.

Washing, filling and sealing part

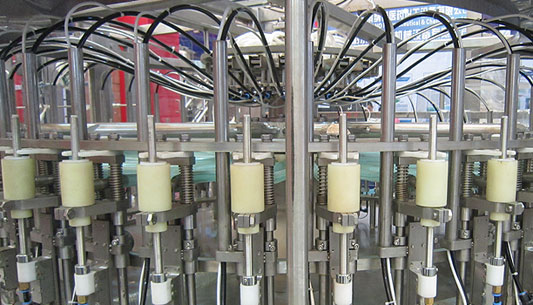

SPCGF2/10 blowing, washing, filling and sealing monoblock machine including washing, filling and sealing. Washing can depend on customer’s requirements to choose traditional water washing mode or ion air washing mode , when ion air washing, ion air gun insert into bottle, and its depth can be adjusted by producing sizes, exhaust air after washing will be set off by special device. Filling part adopts Gemue pneumatic diaphragm valve control, guarantee filling accuracy, with function of no bottle no filling. Sealing adopts heating board heat bottleneck and cap at the same time. When heating, it adopts cam sealing, ensure qualified rate.

SPCGF 2/10 blowing, washing, filling and sealing monoblock machine set multichannel security protection device, such as in the machine with the most advanced device , which is optical protection device, with transparent protection cover surrounding transition plate, with multiproccesing overload protect device in drive structure, because of these protect devices so that this machine no matter in producing or maintenance , it will be highly reliable security.
